No Snag and Foldover BeCu Finger Stock 0077001202



We supply No snag and foldover BeCu finger stock. This series of EMI shielding gasekt adopts 3M 9469 adhesive tape for adhesive installation. Available in a wide variety of plated finishes.







Part Number	T(mm)	A	B	C	P	S	Lmax	Nodes	Surface Color
MB-1012-01	0.0635	8.13	2.8	5.3	4.75	0.45	612 mm	129	Bright Finish
MB-1012-0S/N	0.0635	8.13	2.8	5.3	4.75	0.45	612 mm	129	-0S:Tin / -0N:Nickel
MB-1012C-01	0.0635	8.13	2.8	5.3	4.75	0.45	7.62 M	1605	Coil; Bright Finish
MB-2012-01	0.05	8.13	2.8	5.3	4.75	0.45	612 mm	129	Bright Finish
MB-2012-0S/N	0.05	8.13	2.8	5.3	4.75	0.45	612 mm	129	-0S:Tin / -0N:Nickel
Re: Length can be cut into X nodes, X=1.2.3.4..., The surface also can be plated with Gold. Silver & Zinc etc;



No Snag Series shielding gaskets offer the designer a low compression, no snag design. Provided with 3M 9469 self-adhesive tape, these beryllium copper shielding gaskets provide easy and secure mounting. The product mainly has the following advantages feature:



Shielding effectiveness of > 100 dB (77-012) and 80 dB (77-014) for a 100 MHz plane wave

Easy, cost-effective installation since fasteners are not required

Ideal as an all-purpose contact strip for metal cabinets and electronic enclosures

Available in a wide variety of plated finishes, The surface also can be plated with Gold. Silver & Zinc etc

Supplied in standard 612.00 mm lengths or other specified lengths

Application: The foldover BeCu finger stock is typically used in applications where EMI shielding and grounding are critical, such as electronic enclosures, connectors, circuit board assemblies, or any situation where electromagnetic compatibility is necessary. The foldover design allows for easy installation and removal, facilitating maintenance and reconfiguration of electronic systems.





Electromagnetic interference (EMI) is a common challenge faced by numerous industries today. Effective EMI shielding solutions are crucial to safeguard sensitive electronic components from electromagnetic radiation and ensure optimal performance. Among the various shielding options available, BeCu finger stock stands out as a reliable and versatile solution. In this article, we will delve into the benefits and features of our no snag and foldover BeCu finger stock, which is enhanced by the use of 3M 9469 adhesive tape for easy installation and comes in a wide range of plated finishes to meet diverse application requirements.

Unparalleled Protection with BeCu Finger Stock: Beryllium Copper (BeCu) finger stock is renowned for its exceptional electrical conductivity and corrosion resistance properties. It effectively blocks unwanted electromagnetic waves while providing a low-impedance path for the dissipation of electrical currents. The unique finger design allows for easy compression and expansion, making it ideal for applications requiring repeated access or movement. The no snag and foldover design further enhance the usability and convenience of this EMI shielding gasket.

Seamless Installation with 3M 9469 Adhesive Tape: To ensure a hassle-free and secure installation process, our BeCu finger stock series is equipped with 3M 9469 adhesive tape. This high-quality adhesive tape offers excellent bonding strength, allowing for easy attachment to a wide range of surfaces. The 3M 9469 adhesive tape is designed to maintain its integrity even under extreme conditions, including temperature variations, humidity, and exposure to chemicals. The adhesive installation ensures a reliable and long-lasting EMI shielding solution, minimizing the risk of signal interference and component damage.

Wide Variety of Plated Finishes: Our BeCu finger stock series is available in a diverse range of plated finishes, catering to the specific needs of different industries and applications. Plated finishes not only enhance the visual appeal of the finger stock but also provide additional corrosion resistance and improve electrical conductivity. Whether you require nickel, tin, gold, silver, or other plated finishes, we offer a wide selection to meet your requirements. The flexibility in plated finishes ensures compatibility with various environmental conditions, ensuring optimal performance and durability.

Conclusion: When it comes to effective EMI shielding solutions, our no snag and foldover BeCu finger stock series, equipped with 3M 9469 adhesive tape and available in a wide range of plated finishes, stands out as a superior choice. With its exceptional electrical conductivity, corrosion resistance, and ease of installation, this EMI shielding gasket ensures optimal protection for sensitive electronic components across various industries.





Manufacturing Process Flow Of BeCu Fingerstock





Advantages of the company

Two professional Tooling designers both have more than10 Years of design experience.We break through thetechnical difficulties in the stamping field with imported tooling processing equipment and powerful tooling manufacturing capacity.More than 15 sets of molds can be completed each month.

Fast delivery: 7 days for manual samples and 16 days for mass production molds.

Extraordinarily Tooling life: our company adopts special mold materials for more than 100 million times.

Our Company mainly uses raw materials from BrushWellman Co.,Ltd of the USA.

Major Equipments:

Precision grinder:4 sets;

Milling machine :3 sets;

Drilling machine: 3 sets;

Wire-electrode cutting: 2 sets;

The millwrights:1 set;

Else: 5 sets



Environmental Requirements For Products

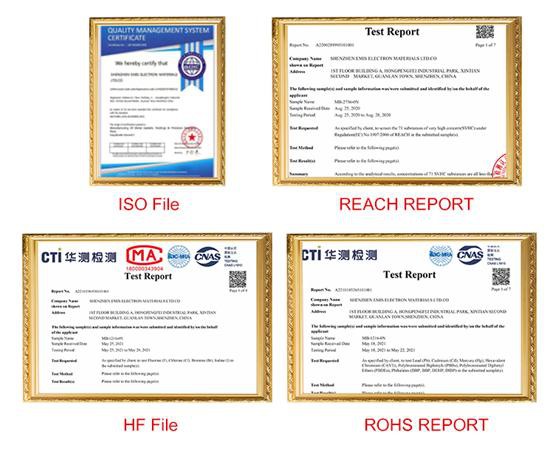

Our BeCu products meet the requirements of SGS report,ROHS report,REACH,Halogen-free (HF) report,etc.





Questions and keys of fingerstock and gaskets procurement purchase:

Q1: What is no snag and foldover BeCu finger stock?

A1: No snag and foldover BeCu finger stock refers to a type of finger stock made from beryllium copper that is designed to prevent snagging or catching on other components or surfaces. It features a foldover design that allows for easy installation and provides effective EMI shielding and grounding.



Q2: What are the benefits of using no snag and foldover BeCu finger stock?

A2: No snag and foldover BeCu finger stock offers several benefits. It minimizes the risk of snagging or catching during installation or use, ensuring smooth operation and preventing damage to components. The foldover design allows for secure sealing and reliable electrical connections. Additionally, beryllium copper provides excellent electrical conductivity and spring properties for effective EMI shielding.



Q3: In which applications is no snag and foldover BeCu finger stock commonly used?

A3: No snag and foldover BeCu finger stock is commonly used in electronic and electrical applications where EMI shielding, grounding, or electrical continuity is required. It finds applications in electronic enclosures, connectors, circuit board assemblies, and other situations where electromagnetic compatibility is necessary.



Q4: Can no snag and foldover BeCu finger stock be easily installed and removed?

A4: Yes, the foldover design of BeCu finger stock allows for easy installation and removal. It facilitates maintenance, reconfiguration, or replacement of the finger stock without causing damage to the components or interfering with the operation of the system.
