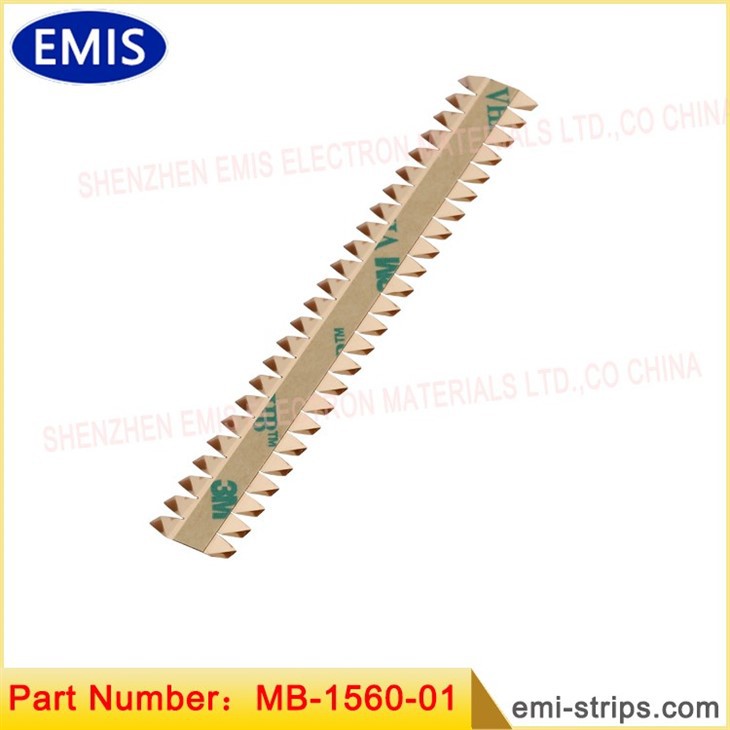

Beryllium Copper Strip for Gap Shielding 0097056002

We supply Beryllium copper strip 0097056002 for gap shielding,the double serrated beryllium copper strips can increase the effective contact area, improving electrical conductivity and minimizing resistance at the connection points.

Beryllium copper strip for gap shielding ,our double serrated beryllium copper strips offer several features and can be applied in various industries and applications. Here are some common features and applications of double serrated beryllium copper strips:

Features:

Enhanced grip: The double serrations on both sides of the strip provide improved grip and holding power, making them suitable for applications where secure clamping or gripping is required.

Anti-slip properties: The serrated pattern increases friction between the strip and other surfaces, reducing the chances of slippage or movement. This feature is valuable in applications where stability and anti-slip properties are crucial.

Electrical conductivity: Beryllium copper exhibits excellent electrical conductivity. The serrated edges of the strip increase the contact area, ensuring better electrical connectivity and minimizing resistance at the connection points.

Corrosion resistance: Beryllium copper is known for its corrosion-resistant properties, making double serrated strips suitable for applications in harsh environments or where exposure to moisture or chemicals is a concern.

Applications:

Clamping and holding: Double serrated beryllium copper strips can be used in clamping and holding applications, such as securing components, panels, or materials together. The serrations provide a strong grip and help prevent movement or displacement.

Electrical grounding: The high electrical conductivity of beryllium copper, combined with the serrated edges, makes these strips useful for electrical grounding applications. They can be employed in electrical equipment, power distribution systems, or circuits that require efficient grounding and electrical connectivity.

Anti-slip surfaces: Double serrated beryllium copper strips find applications in areas where anti-slip properties are desired. They can be utilized in flooring systems, ramps, or other surfaces where preventing slippage is crucial for safety.

Connectors and contacts: The serrated edges of these strips facilitate better electrical contact, making them suitable for connectors, contacts, or terminals in electronic devices, electrical connections, or telecommunications equipment.

Industrial applications: Double serrated beryllium copper strips are often used in various industrial applications, such as gaskets, seals, shims, or spacers. The serrations aid in better gripping, sealing, or providing structural support.

In various industries where electrical conductivity and resistance minimization are critical, the utilization of high-quality materials and innovative designs plays a pivotal role. One such material that has gained prominence in electrical engineering applications is beryllium copper. Specifically, beryllium copper strips with a double serrated design offer significant advantages when it comes to improving electrical conductivity and minimizing resistance at connection points, making them an ideal choice for gap shielding purposes. This article explores the unique characteristics and benefits of double serrated beryllium copper strips and their impact on enhancing performance in electrical systems.

Understanding Beryllium Copper:

Beryllium copper is a copper alloy that contains a small percentage of beryllium, typically ranging from 0.5% to 3%. This alloy exhibits exceptional mechanical and electrical properties, making it highly suitable for applications that require high strength, conductivity, and resistance to fatigue and corrosion. Beryllium copper possesses a unique combination of properties, including high tensile strength, excellent thermal conductivity, and superior electrical conductivity.

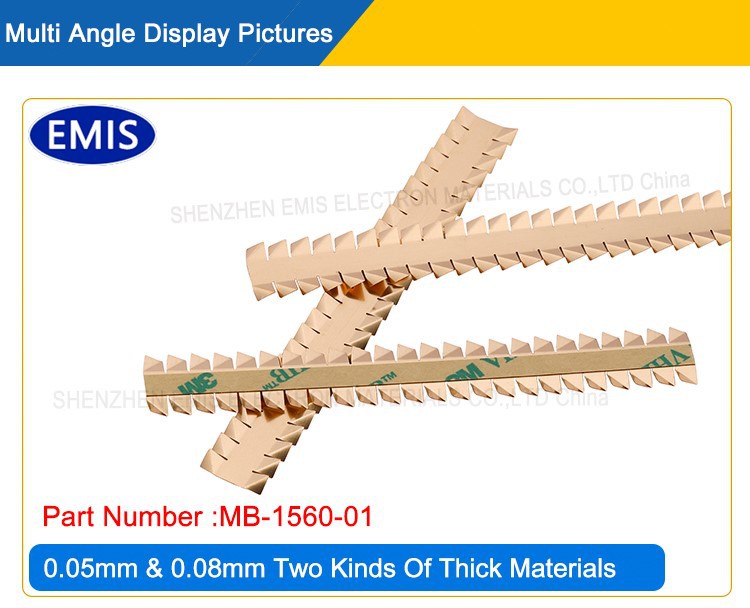

Double Serrated Beryllium Copper Strips:

Double serrated beryllium copper strips take advantage of the inherent properties of beryllium copper and offer an innovative design that further enhances their performance. The double serrations refer to the presence of two sets of serrated edges along the length of the strip. These serrations increase the effective contact area when the strip is used for gap shielding, thereby improving electrical conductivity and minimizing resistance at the connection points.

Benefits of Double Serrated Beryllium Copper Strips:

Enhanced Electrical Conductivity: The double serrations in the beryllium copper strips significantly increase the surface area of contact, allowing for better electrical conduction. This feature ensures a more reliable and efficient flow of electrical current through the connection points, minimizing the risk of signal degradation or power loss.

Resistance Minimization: By increasing the effective contact area, double serrated beryllium copper strips minimize resistance at the connection points. Reduced resistance results in less energy loss and heat generation, leading to improved overall system performance and longevity.

Improved Mechanical Stability: Beryllium copper strips, in general, exhibit excellent mechanical strength and fatigue resistance. The double serrated design further enhances their stability, allowing them to withstand repeated mating and demating cycles without significant wear or degradation. This makes them suitable for applications that involve frequent disconnections and reconnections.

Corrosion Resistance: Beryllium copper is inherently resistant to corrosion, offering durability and longevity in various environments. This corrosion resistance ensures that the double serrated strips maintain their performance characteristics over extended periods, even in harsh conditions.

Conclusion:

Double serrated beryllium copper strips offer a significant advantage in enhancing electrical conductivity and minimizing resistance at connection points. With their unique design and exceptional properties, these strips find extensive use in various industries where high-performance electrical systems are crucial. By increasing the effective contact area and optimizing electrical conduction, double serrated beryllium copper strips contribute to improved system performance, durability, and reliability. As technology continues to advance, these innovative strips will play an increasingly vital role in shaping the future of electrical engineering.

Manufacturing Process Flow Of BeCu Fingerstock

Major Duties:

Mainly produce BeCu EMI Fingerstock, BeCu Spiral Tube,SMD spring,BeCu Spring,EMC room Fingerstock and precise stamping parts,etc.

Advantages of the company

Our Company mainly uses raw materials from BrushWellman Co.,Ltd of the USA.

high precision punching machine:we mainly use Taiwan vibration punch to ensure the stability of the equipment.

Quality stability: our company has full-time personnel from IQC, PQC to FQC to ensure quality stability.

Rapid tooling repair:tooling maintenance engineer with Over 10 years working experience.

Commonly used tooling accessories are stocked to ensure the stability and continuity of production;

Unique oil removal technology to ensure the surface of product clean

Equipments of stamping manufacture:

Speedy press machine from Micron TaiWan:30 Ton 2 sets.

Speedy press machine from Micron TaiWan:40 Ton 1 sets.

Press machine:25 Ton 10sets Manufactured by XuZhou Pressing Machine factory

Press machine:40 Ton 10sets Manufactured by XuZhou Pressing Machine factory

Press machine:63 Ton 4sets Manufactured by XuZhou Pressing Machine factory

Tapping machine:1 set

Washing machine:1 set

Other equipments:7 sets

High Speed Punching Machine:

Questions and answers of production process and technology

Q1: What is gap shielding?

A1: Gap shielding refers to the process of using a conductive material, such as Beryllium copper strip, to fill or cover gaps in electronic devices or systems. It helps to reduce electromagnetic interference (EMI) and improve overall electromagnetic compatibility (EMC).

Q2: What are the advantages of using Beryllium copper strip for gap shielding?

A2: Beryllium copper strip offers several advantages for gap shielding, including high electrical conductivity, excellent thermal conductivity, good corrosion resistance, and high strength. It is also known for its durability and reliability.

Q3: Can Beryllium copper strip be easily shaped and formed to fit different gap configurations?

A3: Yes, Beryllium copper strip is known for its excellent formability. It can be easily shaped, bent, or formed to fit various gap configurations, making it suitable for different shielding requirements.

Q4: Are there any safety concerns associated with Beryllium copper strip?

A4: Beryllium copper strip contains a small amount of beryllium, which can be hazardous if it is inhaled as fine particles or fumes during processing. Proper safety precautions, such as wearing protective equipment and working in well-ventilated areas, should be followed when handling and working with beryllium copper strip.

Q5: Where can Beryllium copper strip be commonly found?

A5: Beryllium copper strip is commonly used in industries such as electronics, telecommunications, aerospace, defense, and automotive. It can be found in applications like connectors, switches, relays, gaskets, springs, and other components requiring effective EMI shielding.
