Knitted Wire Mesh Gasket





We offer Knitted Wire Mesh Gasket which is a kind of EMC gasket used for EMI and RFI shielding. It is manufactured using the best quality raw materials and advanced technology. Wire Mesh Gasket comes in many different shapes to suit different applications. It can be round , rectangular, double round, round with tail etc.





Part Number	Diameterφ	Part Number	Diameterφ
S-C-2424-B-0	φ2.4mm+0.5/-0.0mm	S-C-7979-B-0	φ7.9mm+0.8/-0.0mm
S-C-3232-B-0	φ 3.2mm+0.5/-0.0mm	S-C-9595-B-0	φ9.5mm+0.8/-0.0mm
S-C-4040-B-0	φ4.0mm+0.5/-0.0mm	S-C-1313-B-0	φ12.7mm+0.8/-0.0mm
S-C-4848-B-0	φ4.8mm+0.8/-0.0mm	S-C-1515-B-0	φ15.9mm+1.0/-0.0mm
S-C-6464-B-0	φ6.4mm+0.8/-0.0mm	S-C-2525-B-0	φ25.4mm+1.0/-0.0mm



Part Number	Width	high	Part Number	Width	high
S-R-1616-B-0	1.6+0.3/-0mm	1.6+0.3/-0mm	S-R-7932-B-0	7.9+0.8/-0.0mm	3.2+0.5/-0mm
S-R-3216-B-0	3.2+0.3/-0mm	1.6+0.3/-0mm	S-R-9532-B-0	9.5+0.8/-0.0mm	3.2+0.5/-0mm
S-R-4816-B-0	4.8+0.4/-0mm	1.6+0.3/-0mm	S-R-1332-B-0	12.7+0.8/-0.0mm	3.2+0.5/-0mm
S-R-7916-B-0	7.9+0.8/-0.0mm	1.6+0.3/-0mm	S-R-1932-B-0	19.1+1.0/-0.0mm	3.2+0.5/-0mm
S-R-9516-B-0	9.5+0.8/-0.0mm	1.6+0.3/-0mm	S-R-2532-B-0	25.4+1.0/-0.0mm	3.2+0.5/-0mm
S-R-1316-B-0	12.7+0.8/-0.0mm	1.6+0.3/-0mm	S-R-4848-B-0	4.8+0.8/-0.0mm	4.8+0.8/-0.0mm
S-R-2424-B-0	2.4+0.5/-0.0mm	2.4+0.5/-0.0mm	S-R-6448-B-0	6.4+0.8/-0.0mm	4.8+0.8/-0.0mm
S-R-3224-B-0	3.2+0.5/-0.0mm	2.4+0.5/-0.0mm	S-R-2532-B-0	7.9+0.8/-0.0mm	4.8+0.8/-0.0mm
S-R-4824-B-0	4.8+0.8/-0.0mm	2.4+0.5/-0.0mm	S-R-6464-B-0	6.4+0.8/-0.0mm	6.4+0.8/-0.0mm
S-R-6424-B-0	4.8+0.8/-0.0mm	2.4+0.5/-0.0mm	S-R-7964-B-0	7.9+0.8/-0.0mm	6.4+0.8/-0.0mm
S-R-9524-B-0	9.5+0.8/-0.0mm	2.4+0.5/-0.0mm	S-R-9564-B-0	9.5+0.8/-0.0mm	6.4+0.8/-0.0mm
S-R-9516-B-0	9.5+0.8/-0.0mm	1.6+0.3/-0mm	S-R-1364-B-0	12.7+0.8/-0.0mm	6.4+0.8/-0.0mm
S-R-9516-B-0	9.5+0.8/-0.0mm	1.6+0.3/-0mm	S-R-9595-B-0	9.5+0.8/-0.0mm	9.5+0.8/-0.0mm



Part Number	Width	high	Part Number	W	H
S-B-4113-MD-0	12.7+1.6/-0.0mm	4.1+0.5/-0.0mm	S-B-1988-MD-0	19.1+1.6/-0.0mm	8.8+0.8/-0.0mm
S-B-1941-MD-0	19.1+1.6/-0.0mm	4.1+0.5/-0.0mm	S-B-2588-MD-0	25.4+1.6/-0.0mm	8.8+0.8/-0.0mm
S-B-1657-MD-0	16+1.6/-0.0mm	5.7+0.8/-0.0mm	S-B-1910-MD-0	19.1+1.6/-0.0mm	10.4+1.2/-0.0mm
S-B-1957-MD-0	19+1.6/-0.0mm	5.7+0.8/-0.0mm	S-B-2810-MD-0	28.5+2.0/-0.0mm	10.4+1.2/-0.0mm
S-B-1972-MD-0	19.1+1.6/-0.0mm	7.2+0.8/-0.0mm	S-B-2513-MD-0	25.4+1.6/-0.0mm	13.6+1.6/-0.0mm
S-B-2572-MD-0	25+1.6/-0.0mm	7.2+0.8/-0.0mm	S-B-3113-MD-0	31.2+2.0/-0.0mm	13.6+1.6/-0.0mm



Note:

1. Braided wire material: beryllium copper, monel wire, tinned copper wire, tinned copper clad steel wire, tinned copper clad iron wire, stainless steel wire, etc.;

2. The surface of the braided wire can be natural color; tinned; nickel-plated; silver-plated; gold-plated, etc.;

3. For special materials and non-standard structural shapes, customization is supported. Please contact our sales manager.

Braided wire product brief number: T-S-AABB-MD-P

Remarks:

T represents the type:

T is B: beryllium copper metal braided wire; T is S: solid metal wire mesh; T is C: cored metal wire mesh; T is S: sealed metal wire mesh;

T is W: metal wire mesh belt;

S represents the shape:

S is C: round; S is R:square;S is D:D shape; S is P:P shape; S is B:B shape;

AABB: product structure size.

M represents the material: M is B:beryllium copper; M is S:stainless steel wire; M is M: monel wire; M is D:tinned phosphor copper wire; M is F:tinned copper clad steel wire;

D represents the inner core material: D is 0:none;D is N:chloroprene rubber; D is S: silicone rubber; D is P:polyurethane sponge;

P represents the appearance:0:natural color; P is S:beryllium copper tinned; P is N: beryllium copper plated with nickel; P is Z:beryllium copper plated with zinc.





Introduce

Knitted wire mesh gasket is a composite gasket made of knitted wire mesh and elastic material. Compared with woven wire mesh gasket, the metal wire of knitted wire mesh gasket is woven by special knitting technology, which has different structural characteristics and performance advantages. It is widely used in industries that require high sealing, strong electromagnetic shielding effect or conductive function, providing excellent sealing, shock absorption and anti-interference performance.

Features:

Electromagnetic shielding: effectively resist external electromagnetic interference (EMI) and radio frequency interference (RFI), protecting the normal operation of sensitive equipment.

Sealing performance: elastomeric materials provide reliable sealing effect to prevent leakage of liquid, gas or particles.

Conductivity: metal wire mesh ensures good conductivity and protects electronic equipment from static damage.

Anti-vibration and shock absorption: effectively reduce the damage of vibration to equipment and extend the service life of equipment.

High temperature and corrosion resistance: using high temperature resistant, stainless steel and other materials, it can work stably and long-term under extreme conditions.

Manufacturing process

1. Selection and treatment of metal wire

First, select suitable metal wire materials. Common materials include stainless steel, copper, beryllium copper, nickel and other metals, which have excellent conductivity, high temperature resistance and corrosion resistance. The diameter, strength, conductivity and other properties of the metal wire need to be determined according to the functional requirements of the final gasket.

Surface treatment: In order to improve the corrosion resistance and durability of the metal wire, the metal wire is usually surface treated (such as nickel plating, chrome plating, passivation, etc.) to ensure its stability in long-term use.

2. Knitting and weaving of metal wire

The metal wire is interwoven into a mesh through a knitting process. Knitting is tighter and more structurally stable than traditional weaving processes, which can enhance the overall strength and durability of the metal wire mesh. The weaving methods of knitted metal wire mesh usually include plain weave and twill weave, etc., and the appropriate weaving method is selected according to the specific application requirements of the product.

Weaving process: On the knitting machine, the metal wire is interwoven into a mesh through the needles and yarn frames of the knitting machine to form a mesh structure of different specifications. Knitted metal wire mesh usually has good tensile strength and tear resistance, and is suitable for environments with high pressure or high temperature.

High temperature pressing: The wire mesh is combined with the elastomer material through high temperature heating and pressure to ensure that the two are firmly bonded to form a composite structure.

Bonding process: You can also use strong glue or special adhesives to connect the wire mesh with the elastomer material to ensure its long-term stability and sealing effect.

3. Vulcanization or curing treatment

For rubber elastomer materials, vulcanization treatment is usually required. The vulcanization process cross-links the molecular chains of the rubber through heating and chemical reactions, enhancing elasticity and high temperature and wear resistance.

Curing: Vulcanization treatment or other curing processes make the elastomer have good sealing, pressure resistance and heat resistance, and improve the comprehensive performance of the gasket.

4. Cutting and forming

Cut the knitted wire mesh gasket that has been combined into the required size and shape. This step usually requires the use of precision cutting tools to ensure that the product size is accurate, the edges are smooth, and it can meet the installation requirements of different equipment.

Precision cutting: Use laser cutting or mold cutting to ensure the cutting quality of each gasket and avoid damage to the wire mesh or elastomer during the cutting process.



Application Areas

Electronic equipment: used for electromagnetic shielding and electrostatic discharge protection to ensure that the equipment is protected from external interference.

Automotive industry: used in on-board electronic equipment to prevent electromagnetic interference and provide sealing protection.

Aerospace: Provide electromagnetic shielding and sealing protection for high-precision aerospace equipment to ensure its reliability in harsh environments.

Industrial equipment: used for sealing and protection of various machines and equipment to prevent liquid leakage and enhance anti-vibration performance.

Energy industry: Provide effective electromagnetic shielding and grounding protection for power equipment to ensure stable operation of equipment.

Our advantages:

We are an innovative enterprise specializing in the research and development, production and sales of knitted wire mesh gaskets, committed to providing high-quality sealing, shielding, conductive and shockproof solutions to customers around the world. The company has advanced production processes and technical accumulation, and is able to provide customized products and services for customers in different fields.

At our factory, we understand that different applications may have unique requirements. That's why our knitted wire mesh gaskets are fully customizable and modifiable. We offer a range of options, including various sizes, shapes, thicknesses and installation methods, allowing our customers to find the perfect solution to meet their specific EMI shielding needs. Our team of experts works closely with customers to understand their needs and provide custom gaskets that are perfectly suited to their applications.

Contact Us:

Whether you need customized knitted wire mesh gaskets or have questions during the product selection process, we will wholeheartedly provide you with professional technical support and after-sales service. Feel free to contact us for more detailed information about our products and services.



Product qualification



Knitted Metal Mesh Gasket Manufacturing Process

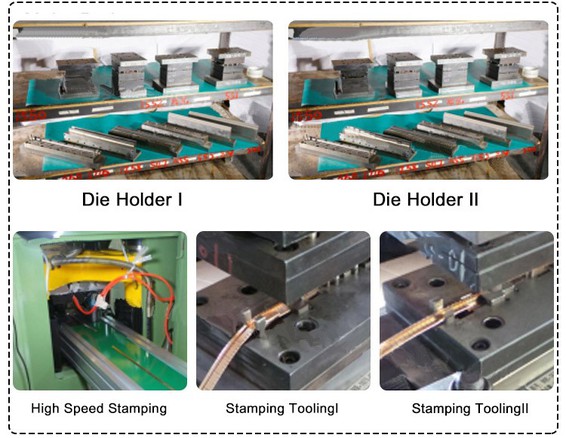

Design And Manufacturing Capability Of Toolings

Major Equipments:

Precision grinder:4 sets;

Milling machine :3 sets;

Drilling machine: 3 sets;

Wire-electrode cutting: 2 sets;

The millwrights:1 set;

Else: 5 sets



Characteristic Parameter Of BeCu Raw Material

Chemical Component

Be-----------1.8%-2.%(high beryllium series)

Cobalt + Nickel--------- 0.20% (at least)

Cobalt +Nickel + Iron------ 0.60% (at most)

Copper-------the remaining



Physical Property

Electrical conductivity (IACS)---22-25%

Elasticity modulus (psi) --- 18.5*10⁶



Electroplating on the Beryllium Copper production surface

Common appearance pictures of electroplating products



Deliver,shipping and serving

Fast Delivery Capacity

1. Normal bulk Lead time: less than 3 days;

2.Maximum time for special products: less than 7 days.

3. Normal Lead time of free sample: less than 2 days.

4. Delivery time for special products: less than 7 days.

5.Completion time of manual sample production: less than 7 days





FAQ

Q1: What is a knitted wire mesh gasket?

A1: A knitted wire mesh gasket is a gasket made of a metal mesh and an elastomer material. It combines the high strength of the metal mesh and the sealing of the elastomer material, and has multiple functions such as electromagnetic shielding, sealing, conductivity, and shockproof. It is widely used in electronics, automobiles, aerospace and other fields.



Q2: Is the production process of the wire mesh gasket complicated?

A2 The production process of the knitted wire mesh gasket is relatively complicated, and it needs to go through the following steps: selection and processing of metal wire, knitting and weaving, elastomer material molding, combination of wire mesh and elastomer, vulcanization or curing, precision cutting, quality inspection and testing, etc. Each link requires fine control to ensure the superiority of product performance.



Q3: What is the difference between knitted wire mesh gaskets and other types of gaskets?

A3 Compared with traditional rubber gaskets and metal gaskets, knitted wire mesh gaskets have the following significant characteristics:

Stronger electromagnetic shielding function: It can effectively prevent electromagnetic interference and is suitable for occasions requiring high electromagnetic compatibility.

Better sealing performance: Through the compound of elastomer and wire mesh, it provides a stronger sealing effect.

Extreme environment resistance: Adapt to harsh working environments such as high temperature and high pressure, and maintain good performance.

Excellent shock resistance: The combination of elastomer materials makes knitted wire mesh gaskets have strong shock resistance and shock absorption functions.



Q4: Choose the right knitted wire mesh gasket?

A4 When choosing a knitted wire mesh gasket, you need to consider the following factors:

Application environment: such as temperature, pressure, corrosiveness, vibration, etc.

Electromagnetic shielding requirements: If you need to prevent electromagnetic interference, choose a wire mesh gasket with good electromagnetic shielding performance.

Sealing requirements: Choose the right material according to the type of medium to be sealed (gas, liquid, etc.).

Durability and life: Choose a highly durable material suitable for long-term use.



Q5: What are the common materials for wire mesh gaskets?

A5: Materials include:

Stainless steel: It has excellent corrosion resistance and high temperature resistance, and is often used in applications requiring high durability.

Beryllium copper: has good electrical conductivity and is suitable for electromagnetic shielding applications.

Nickel alloy: has high temperature resistance and corrosion resistance, suitable for extreme working environments.

Copper: has good electrical conductivity and is suitable for shielding and protection in electrical equipment.



Q6: Can woven wire mesh gaskets be customized according to customer needs?

A6: Yes, knitted wire mesh gaskets can be customized according to the specific needs of customers. This includes customizing the aperture of the wire mesh, the material of the wire, the type of elastomer, the size and shape of the gasket, etc. According to different application requirements, we can provide customers with tailor-made solutions.



Q7: How to maintain and care for knitted wire mesh gaskets?

A7: Regular inspection: Regularly check the integrity of the gasket to ensure that there is no damage, wear or aging.

Cleaning: Avoid using too strong chemical solvents when cleaning to avoid damaging the material. It is recommended to wipe with a neutral detergent and a soft cloth.

Replacement: If the gasket is in an extreme environment for a long time, replace it regularly to ensure equipment performance.
