When it comes to the world of electronic enclosures, ensuring proper shielding and protection is of paramount importance. Enclosure BeCu (Beryllium Copper) gaskets play a crucial role in achieving electromagnetic compatibility (EMC) and preventing electromagnetic interference (EMI). As a reliable supplier of Enclosure BeCu Gaskets, I often encounter questions regarding the standard size of these gaskets. In this blog post, I will delve into the topic, exploring the factors that influence the standard size, the common sizes available, and the importance of choosing the right size for your specific application.
Factors Influencing the Standard Size of Enclosure BeCu Gaskets
The standard size of Enclosure BeCu Gaskets is not a one - size - fits - all concept. Several factors come into play when determining the appropriate size for a particular application.
Enclosure Design
The design of the electronic enclosure itself is a major determinant. The shape, dimensions, and the mating surfaces of the enclosure will dictate the size of the gasket needed. For example, a rectangular enclosure will require a different gasket size compared to a circular one. The width and height of the enclosure's groove where the gasket will be placed also influence the gasket's cross - sectional dimensions.
EMC/EMI Requirements
The level of electromagnetic shielding required is another critical factor. Higher levels of shielding may necessitate a larger or more densely packed gasket. The frequency range of the electromagnetic interference that needs to be blocked can also affect the size. For instance, gaskets designed to block high - frequency EMI may have different physical dimensions compared to those for low - frequency applications.
Compression and Deflection
The amount of compression and deflection the gasket can withstand is important. When the enclosure is assembled, the gasket needs to be compressed to form a proper seal. The standard size should be chosen in such a way that it can be compressed to the required level without being over - compressed or under - compressed. Over - compression can damage the gasket, while under - compression may result in an ineffective seal.
Common Standard Sizes of Enclosure BeCu Gaskets
While there is no single global standard size for Enclosure BeCu Gaskets, there are some common sizes that are widely used in the industry.
Cross - Sectional Dimensions
The cross - sectional dimensions of the gasket are typically specified by its width and height. Common widths range from 1mm to 10mm, and heights can vary from 0.5mm to 5mm. For example, a 3mm wide and 1.5mm high gasket is a frequently used size for many medium - sized enclosures. These dimensions are chosen to fit into standard grooves in enclosures and to provide an adequate seal.
Length
The length of the gasket can be customized according to the perimeter of the enclosure. However, some common pre - cut lengths are available, such as 100mm, 200mm, 500mm, and 1000mm. This allows for easy installation and reduces the need for excessive cutting on - site.
Importance of Choosing the Right Size
Selecting the correct size of Enclosure BeCu Gasket is crucial for several reasons.
Effective Shielding
A properly sized gasket will ensure maximum contact with the enclosure surfaces, providing an effective barrier against electromagnetic interference. If the gasket is too small, there may be gaps that allow EMI to penetrate. On the other hand, an oversized gasket may not fit properly into the groove, leading to poor compression and reduced shielding effectiveness.
Durability
The right size gasket will experience the appropriate amount of compression and deflection, which is essential for its long - term durability. A gasket that is over - compressed may lose its elasticity over time, while an under - compressed gasket may not maintain a proper seal.
Cost - Efficiency
Choosing the correct size from the start can save costs associated with rework, replacement, and wasted materials. A well - sized gasket will perform its function effectively without the need for additional components or frequent replacements.
Our Product Range

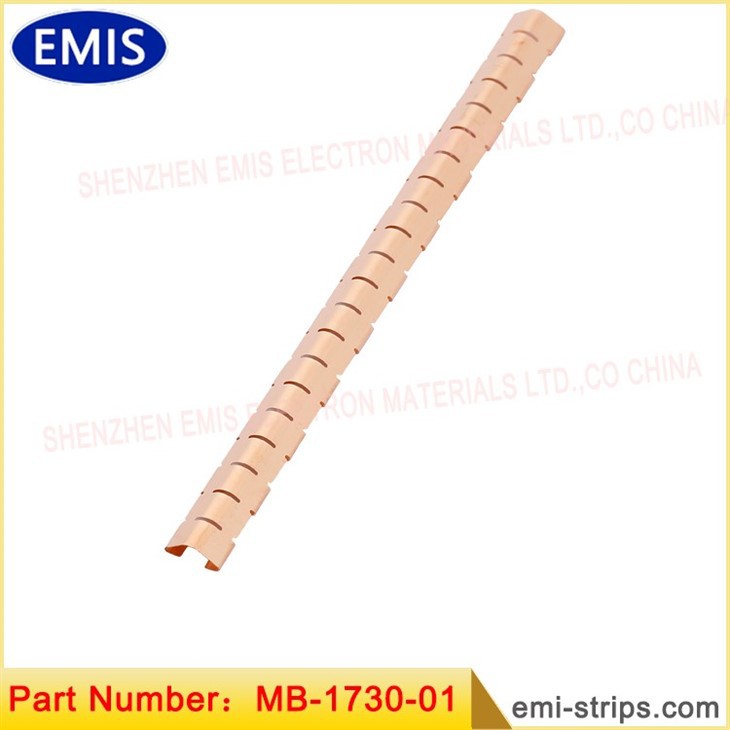

As a supplier of Enclosure BeCu Gaskets, we offer a wide range of sizes to meet the diverse needs of our customers. Our product portfolio includes EMC BeCu Strips, which are ideal for applications requiring high - performance electromagnetic shielding. These strips come in various standard sizes and can be customized according to specific requirements.
We also provide Tin - plated EMI Strips 0077007102. The tin plating enhances the corrosion resistance of the BeCu material, making these strips suitable for harsh environments. They are available in different cross - sectional dimensions and lengths to fit a variety of enclosures.
In addition, our Low Profile and Grounding BeCu Gasket is designed for applications where space is limited. These gaskets have a reduced height while still providing excellent grounding and shielding performance.
How to Determine the Right Size for Your Application
If you are unsure about the standard size of Enclosure BeCu Gasket for your specific application, our team of experts is here to help. We can assist you in evaluating your enclosure design, EMC/EMI requirements, and other relevant factors to recommend the most suitable gasket size.
You can provide us with the following information:
- The dimensions and shape of your enclosure.
- The frequency range of the electromagnetic interference you need to block.
- The level of compression and deflection that the gasket can tolerate.
Based on this information, we can offer you a customized solution that meets your exact needs.
Conclusion
In conclusion, the standard size of Enclosure BeCu Gaskets is influenced by multiple factors, including enclosure design, EMC/EMI requirements, and compression needs. Choosing the right size is crucial for effective shielding, durability, and cost - efficiency. As a supplier, we are committed to providing high - quality Enclosure BeCu Gaskets in a variety of standard sizes and can also offer customized solutions.
If you are in the market for Enclosure BeCu Gaskets, we invite you to contact us for a detailed discussion about your requirements. Our team is ready to assist you in finding the perfect gasket size for your application and to ensure that you achieve the best possible electromagnetic shielding performance.
