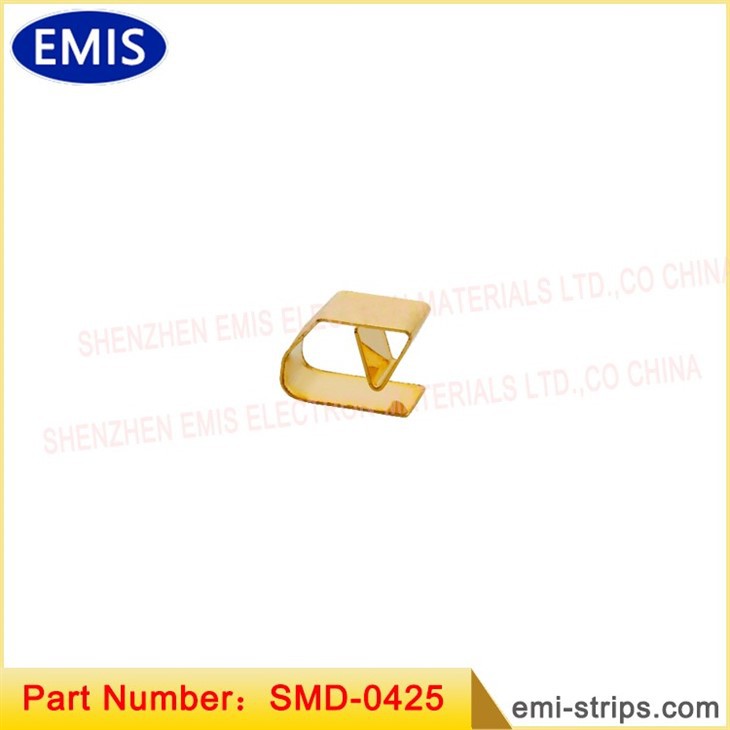

SMT EMI Contact Finger

We supply SMT EMI Contact Finger. Due to its high conductivity, it can effectively prevent EMI leakage and reduce product vibration.these are springs components used in electronic devices and systems to mitigate electromagnetic interference.

In the world of advanced electronics, electromagnetic interference (EMI) poses a significant challenge to the performance and reliability of electronic devices and systems. To address this issue, the use of SMT EMI contact fingers has emerged as a highly effective solution. These spring components are designed to provide both high conductivity and mechanical resilience, enabling them to effectively prevent EMI leakage and reduce product vibration. In this article, we will explore the importance of SMT EMI contact fingers and their role in mitigating electromagnetic interference in electronic devices.

The Need for EMI Mitigation:

Electromagnetic interference is a phenomenon where unwanted electromagnetic energy disrupts the proper functioning of electronic systems. EMI can arise from various sources, including nearby electronic devices, power lines, radio frequency signals, and even natural phenomena. It can cause signal degradation, malfunctions, or complete failure of electronic devices, leading to significant financial losses and compromised user experiences.

SMT EMI Contact Finger: An Effective Solution:

SMT EMI contact fingers have gained prominence as an essential component in the fight against EMI. These spring-like conductive elements are specifically designed to make direct contact with the metal casing or shielding of electronic devices. Their high conductivity allows them to provide a low-impedance path for electromagnetic energy, effectively diverting it away from sensitive electronic components and preventing interference.

Conductivity and EMI Prevention:

The primary characteristic that sets SMT EMI contact fingers apart is their high conductivity. These components are typically manufactured using materials such as spring steel or beryllium copper, known for their excellent electrical conductivity properties. The low-resistance path created by the contact fingers allows for efficient dissipation of electromagnetic energy, reducing the potential for EMI leakage.

Mechanical Resilience and Vibration Reduction:

In addition to their electrical conductivity, SMT EMI contact fingers possess excellent mechanical resilience. This resilience enables them to absorb vibrations and shocks that can be detrimental to electronic devices. By minimizing vibrations, these contact fingers not only enhance the longevity and durability of the devices but also contribute to the overall stability and performance of the systems in which they are employed.

Versatility and Integration:

SMT EMI contact fingers are highly versatile and can be integrated into a wide range of electronic devices and systems. Whether it is consumer electronics, automotive electronics, telecommunications equipment, or industrial machinery, these contact fingers provide a reliable and consistent electrical connection. Furthermore, their compatibility with surface mount technology (SMT) allows for easy integration onto printed circuit boards (PCBs), streamlining the manufacturing process.

Conclusion:

Electromagnetic interference remains a significant concern in the world of electronics, potentially compromising the functionality and reliability of electronic devices and systems. SMT EMI contact fingers serve as indispensable components that effectively mitigate EMI leakage and reduce product vibration. With their high conductivity and mechanical resilience, these spring-like components provide a reliable electrical connection while preventing unwanted electromagnetic energy from interfering with sensitive electronic components. By incorporating SMT EMI contact fingers, We can ensure electromagnetic compatibility and deliver high-quality electronic products that meet the demands of today's technology-driven world.

Manufacturing Process Flow Of BeCu Fingerstock

Advantages of the company

Two professional Tooling designers both have more than10 Years of design experience.We break through thetechnical difficulties in the stamping field with imported tooling processing equipment and powerful tooling manufacturing capacity.More than 15 sets of molds can be completed each month.

Fast delivery: 7 days for manual samples and 16 days for mass production molds.

Extraordinarily Tooling life: our company adopts special mold materials for more than 100 million times.

Our Company mainly uses raw materials from BrushWellman Co.,Ltd of the USA.

Major Equipments:

Precision grinder:4 sets;

Milling machine :3 sets;

Drilling machine: 3 sets;

Wire-electrode cutting: 2 sets;

The millwrights:1 set;

Else: 5 sets

Electroplating on the Beryllium Copper production surface

Common appearance pictures of electroplating products

Questions and keys of fingerstock and gaskets procurement purchase:

Q1: What is an SMT EMI contact finger?

A1: An SMT EMI contact finger is a spring-like component used in electronic devices and systems to mitigate electromagnetic interference. It is designed to make direct contact with the metal casing or shielding of a device, providing a low-impedance path for electromagnetic energy to flow and reducing the potential for interference.

Q2: How does an SMT EMI contact finger prevent EMI leakage?

A2: SMT EMI contact fingers have high conductivity, allowing them to efficiently dissipate electromagnetic energy. By providing a low-resistance path, they divert the energy away from sensitive electronic components, preventing EMI leakage and maintaining the integrity of signals.

Q3: What role does mechanical resilience play in SMT EMI contact fingers?

A3: The mechanical resilience of SMT EMI contact fingers allows them to absorb vibrations and shocks that can be detrimental to electronic devices. By reducing product vibration, these contact fingers contribute to the stability, durability, and performance of electronic systems.

Q4: What are the benefits of using SMT EMI contact fingers?

A4: Some of the key benefits of using SMT EMI contact fingers include effective EMI mitigation, reduced EMI leakage, improved signal integrity, reduced product vibration, enhanced mechanical resilience, and compatibility with surface mount technology for easy integration onto PCBs.

Q5: Can SMT EMI contact fingers be customized for specific applications?

A5: Yes, SMT EMI contact fingers can be designed and customized to meet the specific requirements of different applications. Factors such as dimensions, materials, and mechanical properties can be tailored to suit the needs of the electronic device or system in which they will be employed.
