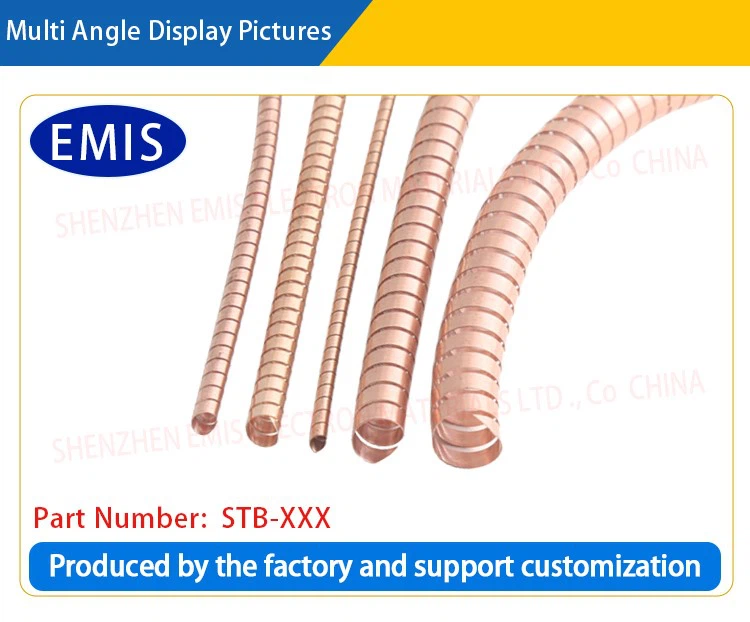

Shielded Spiral Pipe Gasket





The shielding spiral tube gasket is made of highly elastic tin-plated beryllium copper, nickel-plated beryllium copper, stainless steel and other materials. This unique structure gives it an excellent electromagnetic wave shielding effect. It can effectively block the interference of external electromagnetic waves and ensure the normal operation of the equipment in a complex electromagnetic environment.







    Spiral pipe size reference diagram                                              I. Installed in standard O-ring groove              II. Install in dovetail groove







We can customize the width, thickness and outer diameter of beryllium copper/stainless steel raw materials according to your needs. This sealing gasket is installed in a groove. The specific installation method is shown in the figure. Standard product specifications are shown in the beryllium copper spiral tube parameter table:



NO	Part Nubmer	T(mm)	Diameter (D)	Length Max	Surface Finish	Inner Core	Mounted Size
							W	H	N
1	STB-086	0.08	0.86 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-086-IC	1.20	0.58	0.84
2	STB-120	0.08	1.20 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-120-IC	1.60	0.90	1.15
3	STB-160	0.08	1.60 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-160-IC	2.38	1.16	1.52
4	STB-178	0.1	1.78 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-178-IC	2.38	1.35	1.70
5	STB-198	0.1	1.98 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-198-IC	2.76	1.50	1.90
6	STB-238	0.1	2.38 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-238-IC	3.20	1.78	2.30
7	STB-260	0.1	2.60 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-260-IC	3.60	1.95	2.50
8	STB-276	0.1	2.76 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-276-IC	4.00	2.10	2.67
9	STB-320	0.1	3.20 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-320-IC	4.40	2.38	3.10
10	STB-360	0.1	3.60 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-360-IC	4.80	2.67	3.50
11	STB-440	0.1	4.40 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-440-IC	5.95	3.25	4.20
12	STB-475	0.1	4.75 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-475-IC	6.35	3.60	4.60
13	STB-625	0.1	6.25 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-625-IC	8.70	4.70	6.10
14	STB-800	0.1	8.00 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-800-IC	10.70	6.00	7.62
15	STB-960	0.1	9.60 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-960-IC	12.70	7.10	9.24
16	STB-1270	0.1	12.70 mm	10meters	Bright. Nickel. Tin. Gold. silver	STB-1270-IC	16.70	9.60	12.30



































We can also use stainless steel to make spira tube. Part number as below.



NO	Part Number	T(mm)	Diamet er	Length Max /Coil	Surface Finish	Inner Core P/N	Mounted Size
							W	H	N
1	STS-086	0.08	0.86 mm	10meters	Bright. Nickel. Tin etc	STS-086-IC	1.20	0.58	0.84
2	STS-120	0.08	1.20 mm	10meters	Bright. Nickel. Tin etc	STS-120-IC	1.60	0.90	1.15
3	STS-160	0.08	1.60 mm	10meters	Bright. Nickel. Tin etc	STS-160-IC	2.38	1.16	1.52
4	STS-178	0.1	1.78 mm	10meters	Bright. Nickel. Tin etc	STS-178-IC	2.38	1.35	1.70
5	STS-198	0.1	1.98 mm	10meters	Bright. Nickel. Tin etc	STS-198-IC	2.76	1.50	1.90
6	STS-238	0.1	2.38 mm	10meters	Bright. Nickel. Tin etc	STS-238-IC	3.20	1.78	2.30
7	STS-260	0.1	2.60 mm	10meters	Bright. Nickel. Tin etc	STS-260-IC	3.60	1.95	2.50
8	STS-276	0.1	2.76 mm	10meters	Bright. Nickel. Tin etc	STS-276-IC	4.00	2.10	2.67
9	STS-320	0.1	3.20 mm	10meters	Bright. Nickel. Tin etc	STS-320-IC	4.40	2.38	3.10
10	STS-360	0.1	3.60 mm	10meters	Bright. Nickel. Tin etc	STS-360-IC	4.80	2.67	3.50
11	STS-440	0.1	4.40 mm	10meters	Bright. Nickel. Tin etc	STS-440-IC	5.95	3.25	4.20
12	STS-475	0.1	4.75 mm	10meters	Bright. Nickel. Tin etc	STS-475-IC	6.35	3.60	4.60
13	STS-625	0.1	6.25 mm	10meters	Bright. Nickel. Tin etc	STS-625-IC	8.70	4.70	6.10
14	STS-800	0.1	8.00 mm	10meters	Bright. Nickel. Tin etc	STS-800-IC	10.70	6.00	7.62
15	STS-960	0.1	9.60 mm	10meters	Bright. Nickel. Tin etc	STS-960-IC	12.70	7.10	9.24
16	STS-1270	0.1	12.7 mm	10meters	Bright. Nickel. Tin etc	STS-1270-IC	16.70	9.60	12.30



1. Product classification

Spiral tube shielding gaskets are divided into beryllium copper spiral tube gaskets and stainless steel spiral tube shielding gaskets according to different materials.

Beryllium copper spiral tubes are high-performance electromagnetic shielding pads. Made of high-quality beryllium copper material, they have excellent elasticity and resistance to permanent compression deformation.

They can quickly recover to their original shape after being squeezed by external force, and can adapt to gaps of different shapes and sizes to ensure good contact and shielding effects; the surface of the spiral tube is tinned or nickel-plated to further improve its conductivity and shielding performance, and the edge-coated pads have strong

resistance to electrochemical corrosion in humid and salt spray environments.

Stainless steel spiral tube shielding gaskets are spiral tube shielding strips made of stainless steel.

Stainless steel spiral tubes have excellent elasticity and compressive resistance, and can achieve significant support and retraction functions. They can be installed on plates of any thickness without additional support. In addition, stainless steel spiral tubes can also provide excellent shielding performance to protect electronic equipment from electromagnetic interference.



Introduce

The shielded spiral tube gasket is made of highly elastic tin-plated beryllium copper, nickel-plated beryllium copper, stainless steel and other materials. This unique structure gives it an excellent electromagnetic wave shielding effect. It can effectively block the interference of external electromagnetic waves and ensure the normal operation of the equipment in a complex electromagnetic environment. Whether it is high-frequency or low-frequency electromagnetic waves, it can be efficiently shielded by it, providing reliable protection for equipment that requires high electromagnetic wave shielding performance.

Main functions of shielded spiral tube gaskets

Electromagnetic shielding: The most important function is electromagnetic shielding. Through the metal spiral tube structure, it can effectively isolate external or internal electromagnetic interference, protect electronic equipment from electromagnetic radiation interference, and ensure the normal operation of the equipment.

Reduce electromagnetic radiation leakage: When used in a pipeline system for transmitting signals or currents, the shielded spiral tube gasket can prevent the leakage of electromagnetic radiation of signals or currents, avoiding interference with the surrounding environment or equipment.

Improve electromagnetic compatibility (EMC): Applied to industrial equipment, communication equipment, medical equipment and other fields to ensure that the equipment complies with EMC (electromagnetic compatibility) standards and meet legal and safety regulations.

Structural protection and durability: Spiral pipe gaskets can also provide physical protection to prevent equipment from being damaged by friction, collision or other physical damage, and enhance the durability of pipes or equipment.

Structure and materials of shielded spiral pipe gaskets

The structure of shielded spiral pipe gaskets usually includes two parts:

Wire mesh layer: The wire mesh is woven from highly conductive metals (such as stainless steel, copper, aluminum, etc.) and is responsible for providing electromagnetic shielding. The tightness and material of the wire mesh determine its shielding effectiveness.

Elastomer or protective layer: The inner and outer surfaces of the spiral pipe generally have a layer of elastomer (such as rubber, silicone, etc.) or protective layer, which mainly plays a role in waterproofing, corrosion resistance and shock resistance. Elastomer materials can also provide a certain buffering effect and increase the durability of the gasket.

Shielded spiral tube gaskets are high-performance electromagnetic shielding gaskets. This shielding gasket material is an ideal shielding material for military and aerospace projects, as well as some civilian electronic equipment that requires efficient shielding and sealing, and can be widely used in shielding problems that other gaskets cannot solve. The shielding effectiveness of this sealing gasket is 86dB to 165dB.

Stainless steel spiral tubes are also high-performance electromagnetic shielding gaskets. This product is very suitable for civilian applications and complies with European Directive 83528. These gaskets can provide more than 95 dB shielding quality at 1GHz.

Our company provides professional shielding spiral tube gasket customization services, aiming to provide customers in different industries with efficient electromagnetic shielding and protection solutions. Through customization services, we can design and manufacture shielding spiral tube gaskets that meet their special application environments according to the specific needs of customers, ensuring that the performance, size and applicability of the products are perfectly matched to help customers deal with complex electromagnetic interference (EMI) problems.





Application fields

Electronic equipment: In communication, medical, consumer electronics and other equipment, shielded spiral tube gaskets are widely used to protect sensitive components from electromagnetic interference.

Automotive industry: In vehicle-mounted electronic systems, shielded spiral tube gaskets are often used to shield sensors, cables and connectors to prevent electromagnetic interference from affecting the electronic control system of the car, especially the normal operation of autonomous driving and intelligent systems.

Aerospace: In high-demand environments such as spacecraft and satellite communications, shielded spiral tube gaskets can be used for electromagnetic shielding of cables, pipelines, instruments and equipment to ensure the reliability of equipment and the stability of communication.

Industrial applications: In industrial control, power generation equipment, transformers and other equipment, shielded spiral tube gaskets can be used to reduce electromagnetic interference between equipment and improve the stability of electrical systems.

Military and security equipment: In military communication equipment, radar systems, satellite communications and other fields, shielded spiral tube gaskets are used to improve the anti-interference ability of equipment and ensure the safe transmission of important signals.

Performance Advantages

Shielded spiral tube gaskets have excellent conductivity and shielding properties;

Shielded spiral tube gaskets have excellent corrosion resistance after electroplating; The material properties of beryllium copper spiral tubes can achieve better heat transfer and cooling capabilities;

Shielded spiral tube gaskets can provide high elasticity and low relaxation according to spring performance; Stainless steel spiral tubes have excellent corrosion resistance and wear resistance, and their service life is long, reducing maintenance and replacement costs;

Stainless steel spiral tubes can still maintain good mechanical properties under high temperature environments and are suitable for heat exchange and other fields;

Stainless steel spiral tubes are easy to clean and suitable for use in the food and medical industries;

Adding PVC and other inner cores to the spiral tube can change different compression forces;

All products (including electroplating) comply with SGS, ROHS, REACH, environmental and other standards.







Shielded spiral pipe gasket manufacturing process

Product Technical Parameters

Raw Materials:

Spiral Tube: Tin-Plated Berryllium Copper (No-Lead) or Spiral Tube

Tube Core: PVC Hardness 80.



Shielding Effectiveness:

Shielding Quality: In the 1MHz-1GHz frequency band, its shielding effectiveness Exceeds 80dB (80dB-160dB). (As shown in the figure below)

Note:

1. Standard elastic force tinned beryllium copper spiral tube gasket;

2. Medium elastic force tinned beryllium copper spiral tube gasket;

3. Low elastic force tinned beryllium copper spiral tube gasket.

Compression elastic force

Beryllium copper spiral tube shielding gaskets are divided into the following two different compression elastic forces. The ideal compression is 25% of the spiral tube diameter. Since the pressure is related to the thickness of the beryllium copper raw material, the approximate value of the elastic force is marked in the table below:



Diameter (mm)	Standard Stretch*	Medium elasticity
0.86+/-0.051	SS-02	MS-02 NC**
1.20+/-0.051	SS-03	MS-03 NC**
1.60+/-0.076	SS-04	MS-04
1.78+/-0.076	SS-.070	MS-.070
1.98+/-0.076	SS-05	MS-05
2.38+/-0.102	SS-06	MS-06
2.60+/-0.102	SS-.103	MS-.103
2.76+/-0.102	SS-07	MS-07
3.20+/-0.102	SS-08	MS-08
3.60+/-0.127	SS-09	MS-09
4.40+/-0.127	SS-11	MS-11
4.75+/-0.152	SS-12	MS-12
6.25+/-0.178	SS-16	MS-16
8.00+/-0.229	SS-20	MS-20
9.60+/-0.279	SS-24	MS-24
12.70+/-0.381	SS-32	MS-32
Note: * indicates that the standard elastic spiral tube does not have an inner core, ** indicates that this model cannot have an inner core
Standard stretch: 4.8 kg/cm (average); Medium stretch: 1.6 kg/cm (average)



Deliver,shipping and serving



Fast Delivery Capacity

1. Normal bulk Lead time: less than 3 days;

2.Maximum time for special products: less than 7 days.

3. Normal Lead time of free sample: less than 2 days.

4. Delivery time for special products: less than 7 days.

5.Completion time of manual sample production: less than 7 days



Reliable Quality Assurance

Feedback time for customers' complaints about quality: less than 1 hour.

Goods exchange time: less than 1 day.

providing a full range of quality inspection reports to ensure quality and reliability of out product.,





Q1: What is a shielding spiral tube gasket?

A1: A shielding spiral tube gasket is a protective component used for electromagnetic shielding, usually made of metal material and has a spiral structure. Its main function is to prevent electromagnetic interference (EMI) and provide a conductive path. It is often used in various electronic devices and systems to reduce electromagnetic interference and improve the stability of the electrical system.



Q2: What is the main function of the shielding spiral tube gasket?

A2: The main function of the shielding spiral tube gasket is to provide electromagnetic shielding protection, reduce the interference of external electromagnetic waves on the equipment, and prevent the electromagnetic waves emitted by the equipment from interfering with the external environment. In addition, it can also provide electrical connections and conductive paths to a certain extent to ensure that the equipment works stably in a complex electromagnetic environment.

.

Q3: Why choose a customized shielding spiral tube gasket?

A3: Customized shielding spiral tube gaskets can accurately meet the needs of specific applications. Each device has different sizes, shapes and usage environments. Customization can ensure the best shielding effect while ensuring its adaptability, durability and installation convenience. Through customized services, customers can choose the right materials, sizes, surface treatments and structures to ensure that the gaskets operate stably in a specific environment for a long time.



Q4: What characteristics can be customized for shielded spiral tube gaskets?

A4: When customizing shielded spiral tube gaskets, the following characteristics can be adjusted:

Size and shape: Customize length, diameter, pitch, etc. according to the size requirements of the customer's equipment.

Material selection: Select different metal materials according to the working environment, such as beryllium copper, stainless steel, copper-plated alloy, etc., to ensure shielding effect and corrosion resistance.

Surface treatment: Such as nickel plating, silver plating, gold plating, etc., to enhance corrosion resistance, conductivity and mechanical properties.

Structural design: Adjust the spiral structure and number of layers of the gasket to optimize the shielding effect.

Environmental adaptability: Customize high temperature resistance, corrosion resistance, waterproof and dustproof characteristics to ensure long-term stable use under extreme conditions.



Q5: How to ensure the quality of customized shielded spiral tube gaskets?

A5: We adopt a strict quality control process, from design, material selection, production to final testing, every link is strictly checked. Before customization, we will communicate with customers in detail to ensure that the design plan meets the application requirements; after sample production, multiple tests (such as electromagnetic shielding, high temperature resistance, corrosion resistance, etc.) are carried out to ensure product quality. During mass production, full monitoring and testing are also carried out to ensure that each product meets the standards.



Q6: Can shielded spiral tube gaskets be reused?

A6: Shielded spiral tube gaskets are usually designed as reusable components, especially high-quality metal materials and surface treatments to ensure their durability and long life. However, long-term use may cause certain wear or damage, so regular inspection and maintenance are necessary. If the gasket is damaged or performance degrades, timely replacement can ensure that the equipment continues to work normally.



Q7: How to choose a suitable shielded spiral tube gasket?

A7: When choosing a suitable shielded spiral tube gasket, the following factors should be considered:

Electromagnetic compatibility requirements of the equipment: Choose a gasket with sufficient shielding effect.

Working environment: Consider factors such as temperature, humidity, and corrosiveness, and choose materials that adapt to the environment.

Size and shape: Ensure that the gasket matches the equipment interface and installation location.

Durability requirements: Choose high-durability materials based on service life and maintenance cycle.



Q8: What is the delivery time for customized shielded spiral tube gaskets?

A8: The delivery time usually depends on the complexity and production volume of the gasket. Generally speaking, the sample production and verification cycle is about 2-3 days, and the new mold sample is 15 days. If the customer has urgent needs, we can provide expedited service according to the specific situation and try to shorten the delivery cycle.
